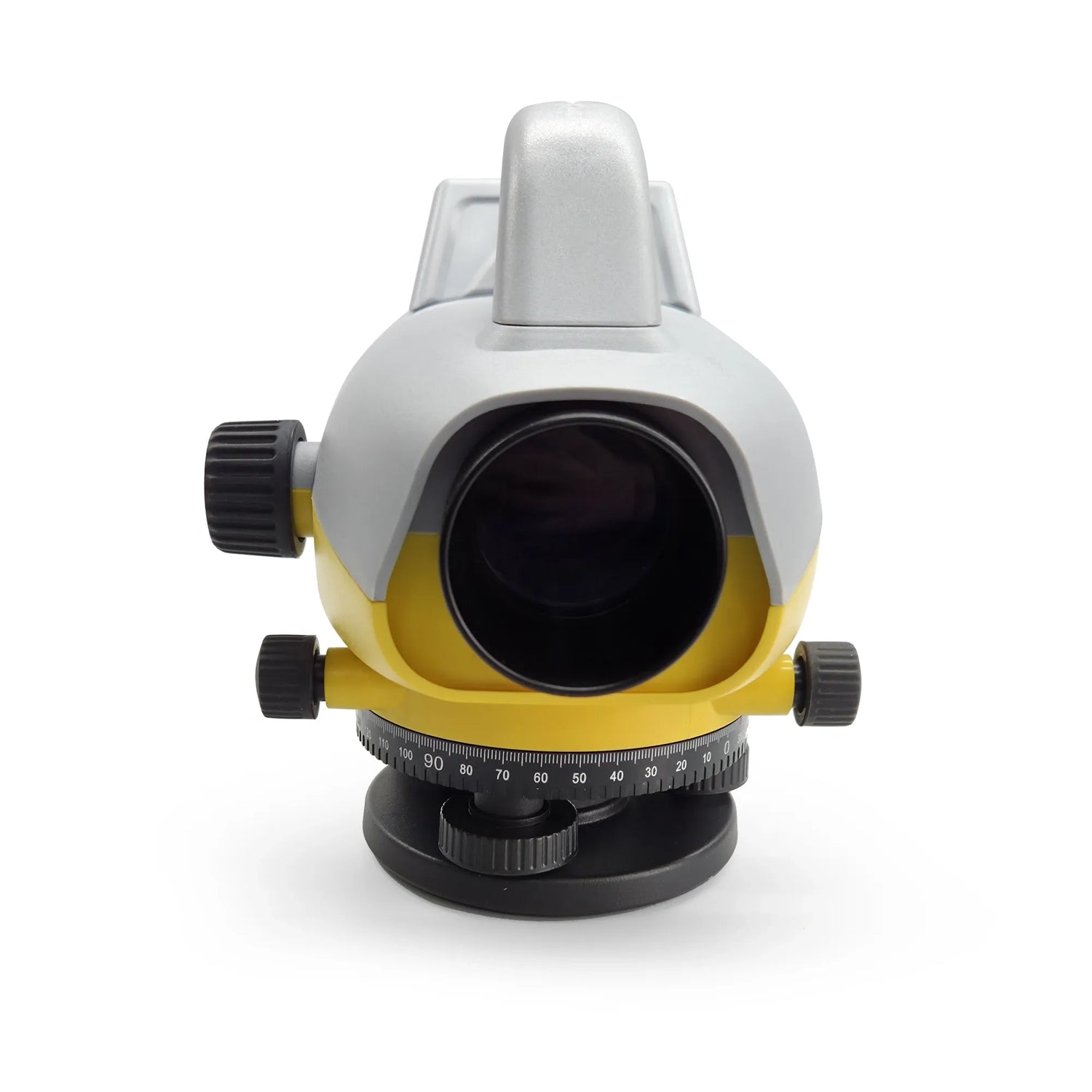

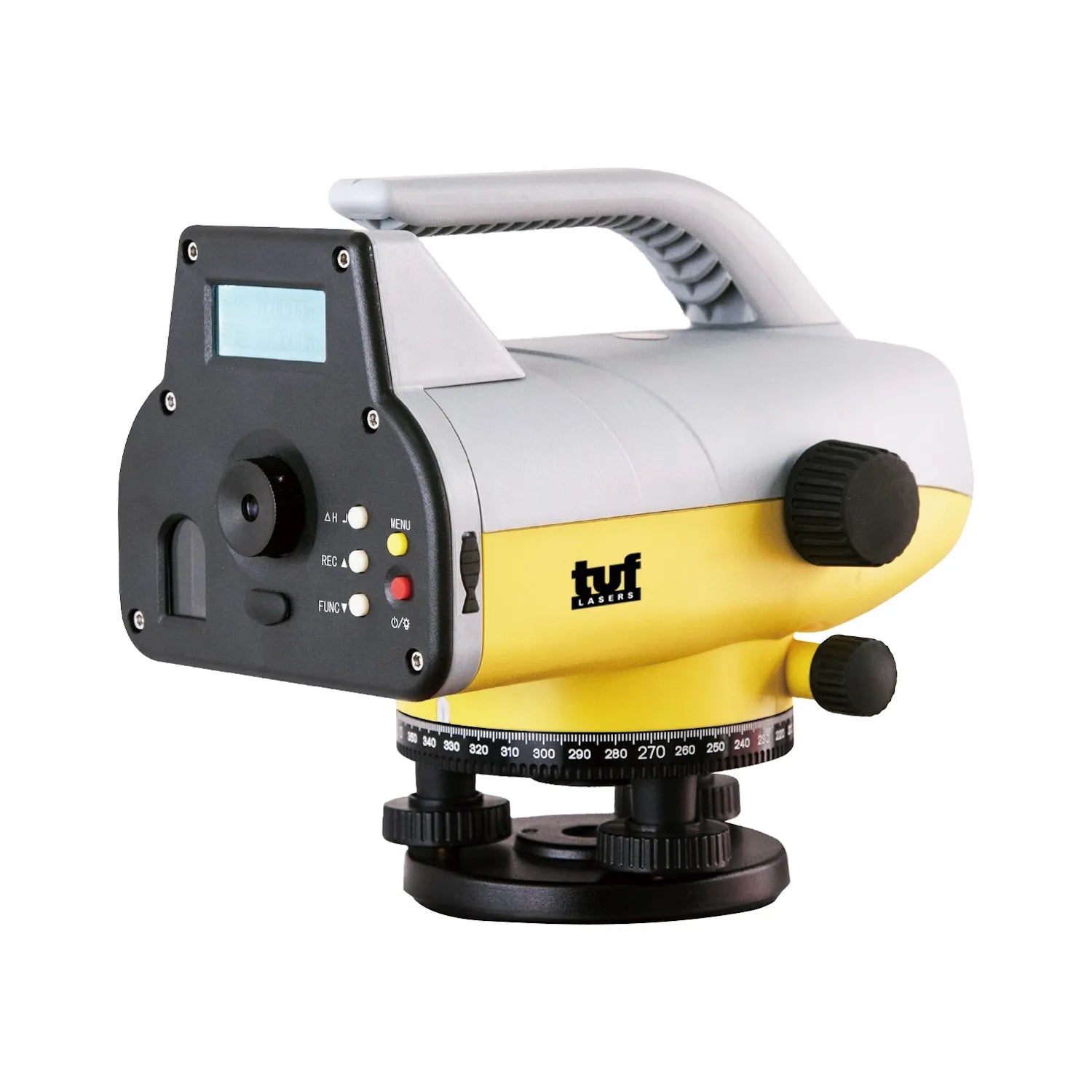

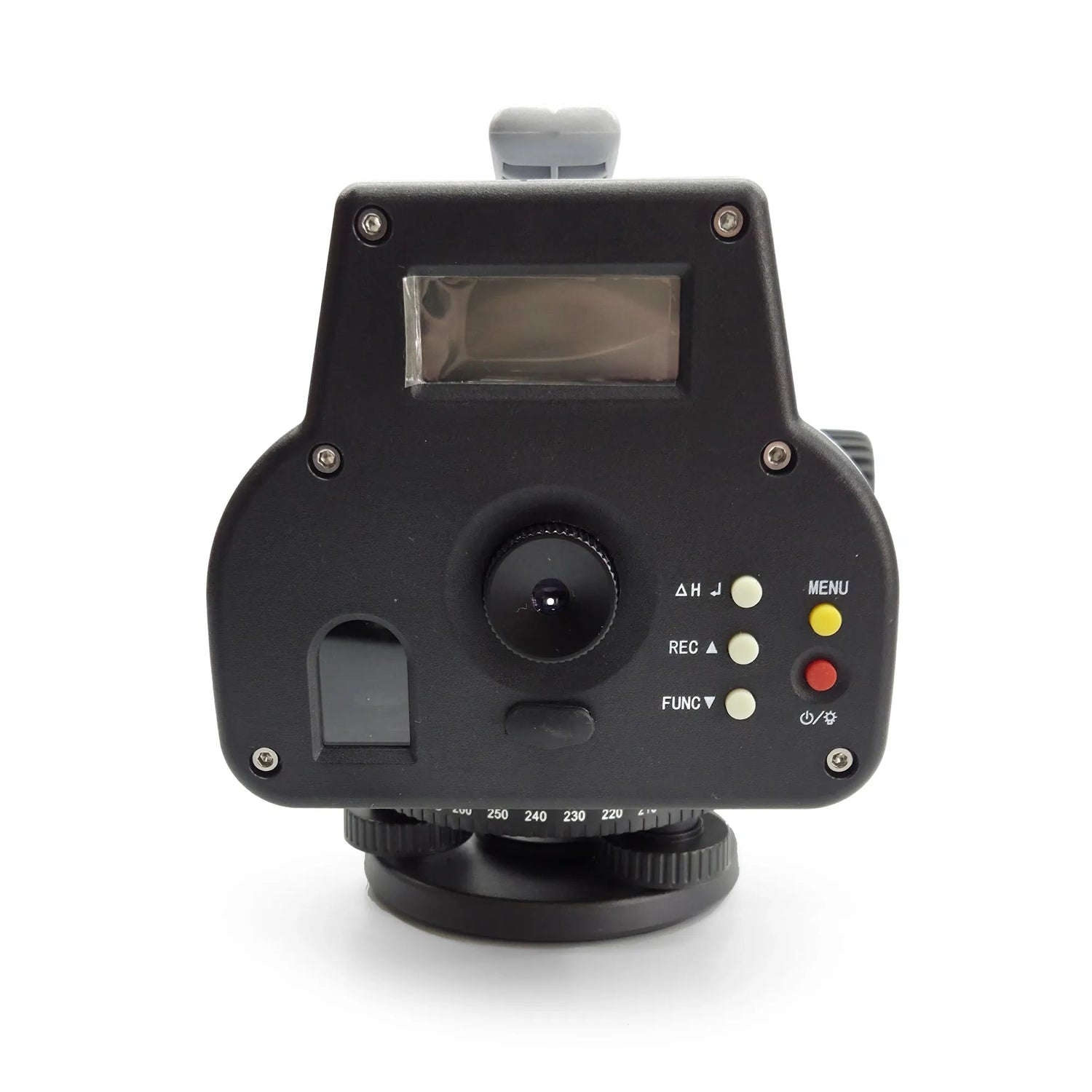

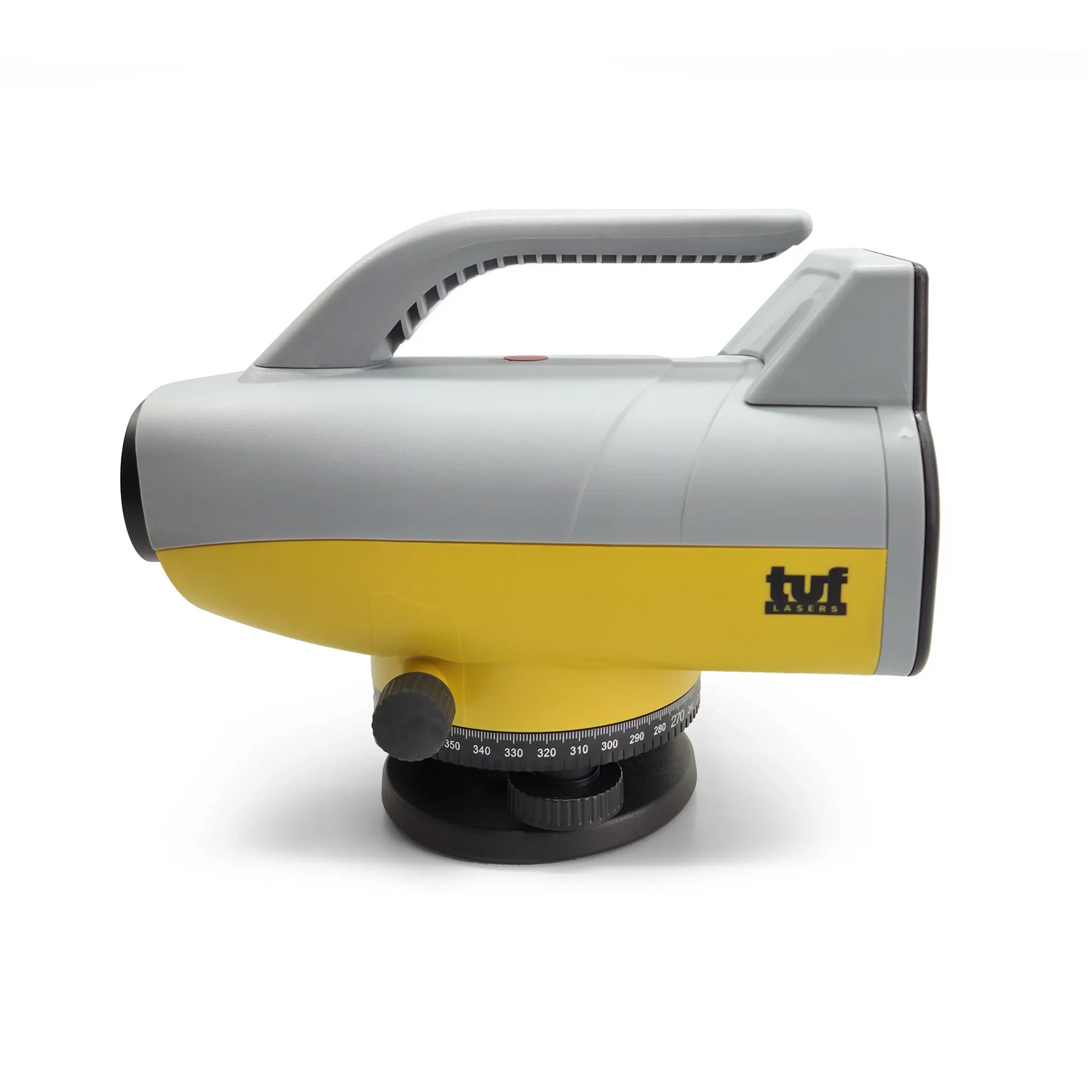

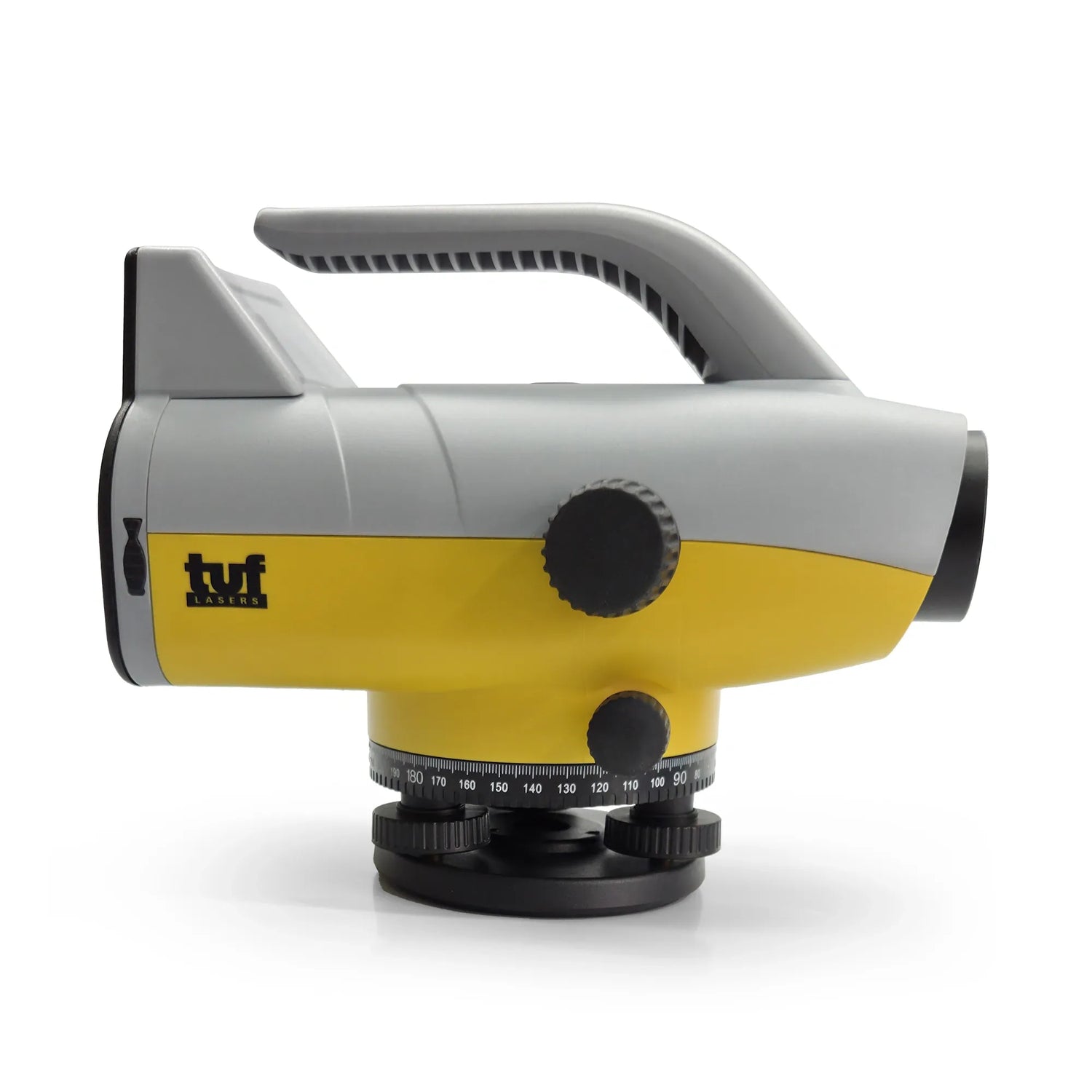

TUF DAL32 Digital Level with 2 x Barcode Staff
$1,045.00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
TUF DAL32 Digital Level with 2 x Barcode Staff is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
TUF DAL32 Digital Level with 2 x Barcode Staff
$1,045.00
Unit price
/
Unavailable
Description
Description
- High-accuracy digital level.
- Used to measure height differences with high accuracy.
- Shoots to barcode staff and E-face / Metric staff.
- Resolution of 0.1mm.
- Optical magnification: 32x

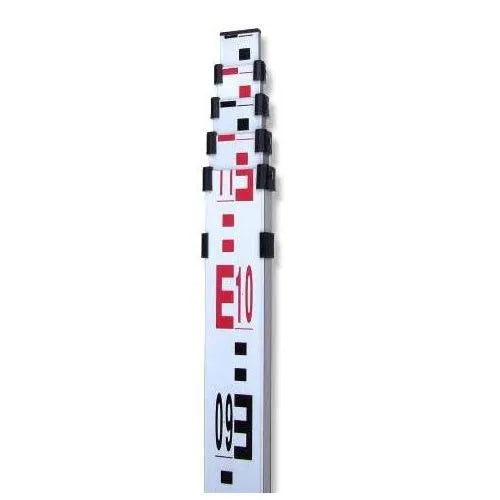

- Includes 5m barcode staff and 5m E-face staff with metric.
- IP55 weather resistant.
- Standard Deviation on 1km double run: ±1.0mm/km
Specifications:
| Magnificiation | 32x |
| Standard Deviation on 1km double run | ±1.0mm/km |
| Measuring Range | 2m-100m |
| Minium Displayed Value | Elevation: 0.0001m Distance: 0.001m |
| Meaurintg Time | <3 seconds |
| Measuring Units | Metres / Feet |
| Telescope Field of View | 1°20' |
| Compensator Range | ±15' |
| Compensator Accuracy | 0.3"/min |
| Data Storage | 1,000 points |
| Battery | 2,200mAh Li-Ion |
| Battery life | >20 hours |
| Net weight | 1.9kg |
| Waterpoof | IP55 |
| Operating Temperature | -20°~+50° |
