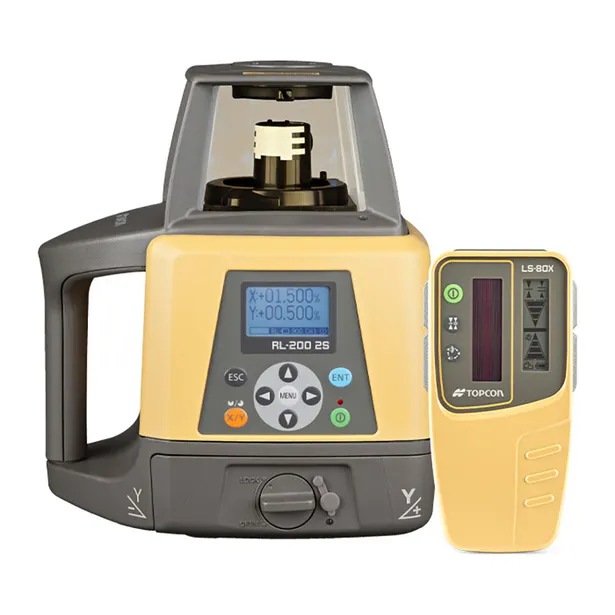

Topcon RL-200 2S Dual Grade Laser

Topcon’s RL-200 2S Dual Grade Rotating Laser provides high-grade repeatability of 7 arc seconds. Setup after setup, time after time, you’re always right on grade.

Topcon lasers are suited to a range of construction exercises including site preparation, drainage, earthworks, 2D machine control applications, and more.

The RL-200 2S can be used over long distances (up to 1,100m) and can measure up to a 25% slope, allowing you to set the cross slope and elevation values you need to measure. The RL-200 2S provides dual slopes up to ±10% on the X axis, or up to -5 to +25% on the Y axis.

• Working Range 1100m
• Wide Dual Grade (Up to 25%)
• Accuracy ±1mm @ 30m
• Dust/Water Rating IP66

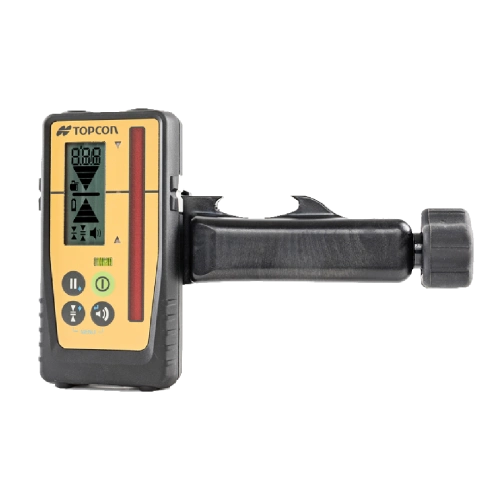

• LS-80X Hand Receiver
• Full Function Remote
• High graphic Display

Specifications

• Accuracy H: ±7 arc seconds
• Auto-Level Range Horizontal ±5°
• Grade: Dual ±10% / -5% to +25%
• Working Area 1100 m (Diameter)
• Rotation Speed 300, 600, 900 rpm
• Dust/Water Rating IP66
• Operating Temp. -20ºC to 50ºC
• Operating Time NIMH Rechargeable (90 hours)
• LS-80X Hand) Receiver (±1mm & 2mm)
• RC-400 Remote: Up to 300m

Includes

• Topcon RL200 2S (Wide Grade) Rotating Laser
• Hard Case
• Topcon LS-80X Hand Receiver
• Receiver Holder
• RC-400 Remote Control
• Rechargeable NIMH Battery
• Instruction Manual
• Australian Calibration Certificate
