Geo Laser KL-91L Pipe Laser Green

The GEO pipe laser KL-91L emits an automatically levelled or defined inclined laser beam as reference axis and is categorized as a class 3R laser due to its higher output power.

It was specifically designed for pipe laying, but can also be used for a variety of other purposes. It can be set up centrically or at a constant distance above the pipe invert. Suitable legs, tripods and fastening systems are available for this.

Performance features

Laser class 3R, laser power < 5 mW. Special features: Laser power adjustable in 2 steps.

Fully automatic

Automatic levelling, banking compensation, inclination zeroing, direction centring and cut-out in case of undervoltage or jerky movement.

Robust metal housing

Anodised, plastic-coated, filled with nitrogen, 100% watertight.

Special laser beam quality

Diode laser with visible beam, high life expectancy and low power consumption. The human eyes are 4 times more sensitve for green light rather then red light.

Brightly illuminated, easily legible LCD display

Self-explanatory, for on/off, device data, company data, lock function, inclination, algebraic sign, unit % or ‰, direction limitation, centring, operating status, battery status and menu.

Easy-to-use keyboard

Clear layout, practical, big, user-friendly keys.

Lithium ion rechargeable battery

Operation time to 34 hours with one charge. Rechargeable in 5 hours max. without having to take out the battery. Special feature: automatic transport cut-out.

Stable mounting legs

Guarantee secure, positively centred footing in the pipe.

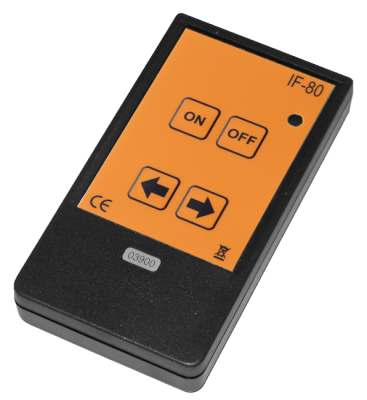

User-friendly infrared remote control

For direction setting, laser on/off and laser flicker mode.

New laser target

Fitted with a special optical system to enhance visibility even when viewed at an angle.
