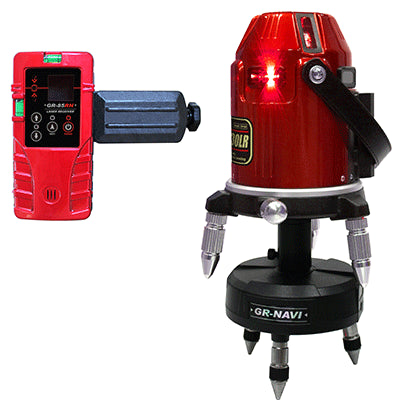

Bear Navi Base - Red or Green Beam
Bear Navi Base - Red or Green Beam - Red Navi Base is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new products, sales, offers and more.
Description
Description
This item comes with Navi Base only.
The NAVI base has the function of auto tracer and can accurately grasp the vertical laser beam into the middle line of receiver.
The shortest time of stepping positioning in this industry : In 5 seconds.
Compact for easy packing and operation.
When you press the GR-Navi option panel on the receiver, the line laser will automatically rotate to find out the line base and this will save much of your working time.
Remote function can make the line laser instrument rotate to any position you want, which is very convenient for only one user to work.
Specifications:
| Model No. | Base : GR-NAVI |
| Battery | AAA Battery(NIMH) x 3pcs |
| Working Voltage | 3V~4.8V ( LED glitters when the battery power is below 3V ) |
| Operating Temp | -10℃~50℃ |
| Auto shutdown function | The power shuts off automatically if it is not operated over 10 minutes |
| Working Time | More then 500 times |
| Weight | 1.9kg |
| Model No. | Receiver : GR-85GN |
| Accuracy | |
| Receiving distance | Max. 80M |
| Navi working distance | Max. 25M |
| Receiving accuracy for Middle line ( distance ) | ±1.0mm(1.5M~15M)~ ±1.5mm(16M~25M) |
| Electrical specification | |
| Battery | AAA Battery(NIMH) x 4 pcs |
| Working Voltage | 4.4V~6.4V ( LED power glitter when the battery is below 4.4V ) |
| Working Temp | -10℃~50℃ |
| Auto shut down | the power will shut off automatically when the receiver does not receive the laser beam for more than 10 minutes. |
| Duration | More than 60 hours |
