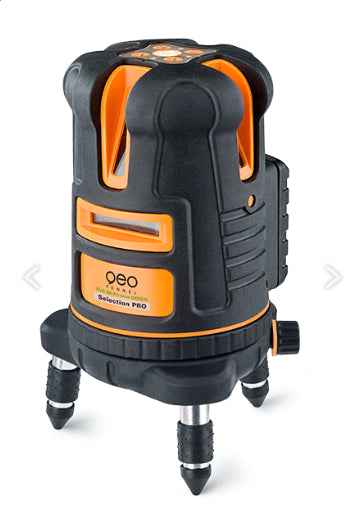

Geo Fennel FL 66-Xtreme SP

FEATURES

• 4 vertical lines at 90° to each other
• 1 horizontal line 130°
• Plumb down beam (red)
• Laser lines switchable separately
• Plumbing function
• Self-levelling function can be locked for manual use (inclined applications)
• Audible and visual alarm when out of level
• Integrated floor tripod
• Slow motion screw for horizontal alignment
• For tripod fixing with 5/8“ thread
• Use with receiver (optional) (FL 66-Xtreme SP)

TECHNICAL DATA

• Self-levelling range : ± 2°
• Accuracy : ± 2 mm / 10 m
• Working range :
• - without receiver : 40 m* (radius)
• - with receiver (optional) :  –
• Laser class : 2
• Operating time (all lines switched on) : 15 h
• Power supply :
• - Li-Ion
• - Alkaline batteries (optional)
• Dust / water protection : IP 65
• Temperature range : 0 °C – +40 °C
• Weight (instrument with battery) : 1.4 kg

* depending on room illumination

SUPPLIED WITH

• Li-Ion batteries
• Charger
• Alkaline battery box
• Laser intensive glasses
• Magnetic target
• Carry case.
