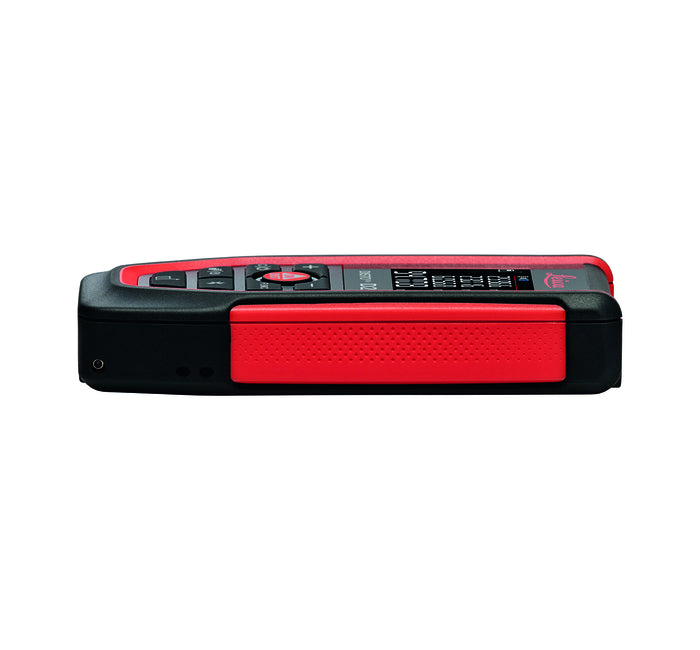

Leica Disto D2

SKU: LG855107
$245.00
Tax included Shipping calculated at checkout.


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description

Now with Bluetooth®, a fully integrated intelligent endpiece, a bright white display and an ISO certified measuring engine that drives 1/16" accuracy and 100 meter measuring range.

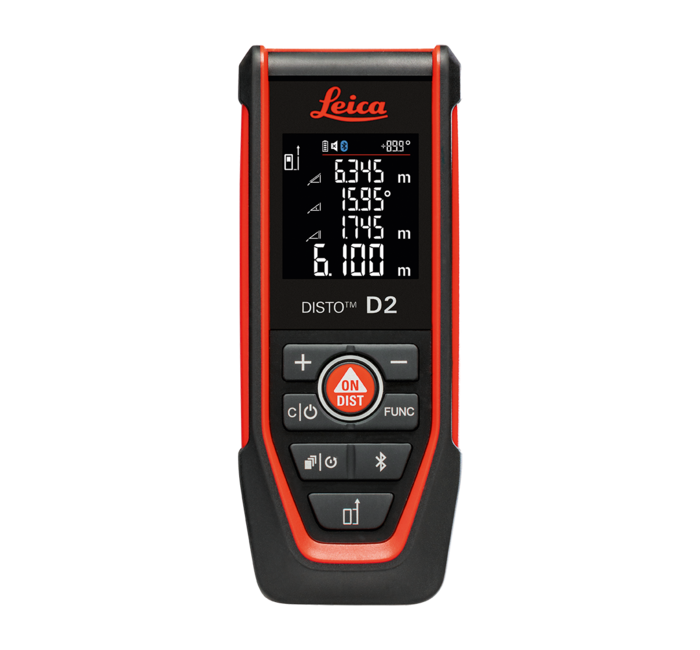

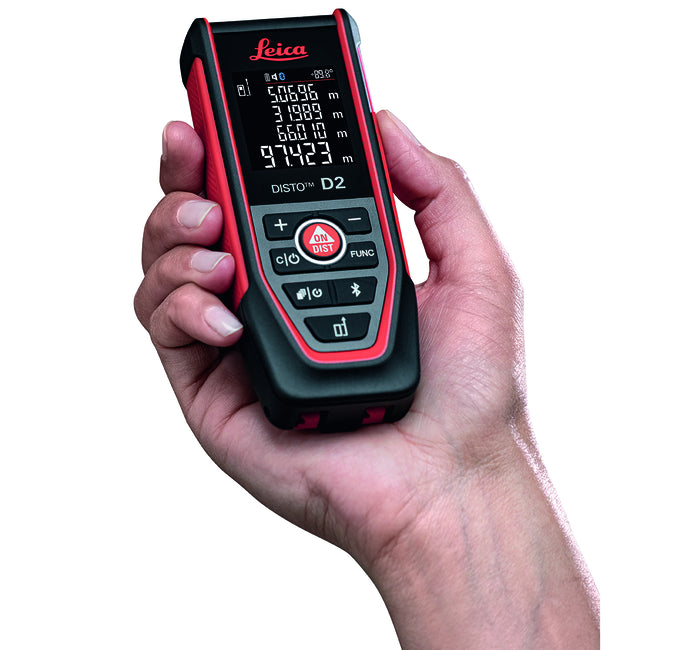

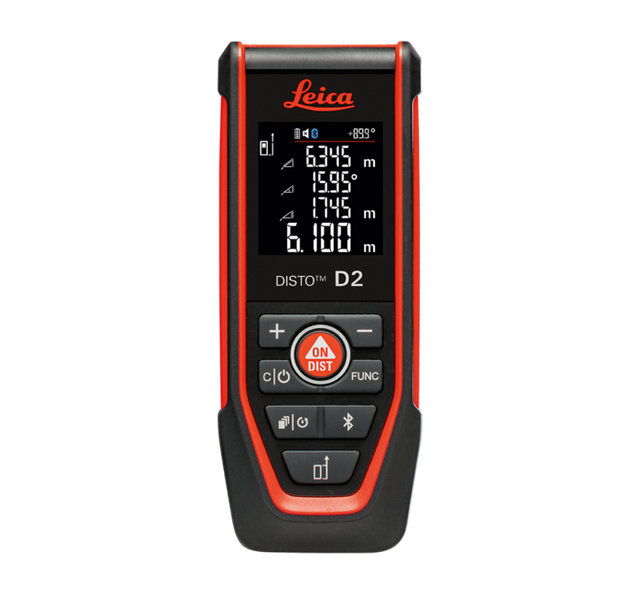

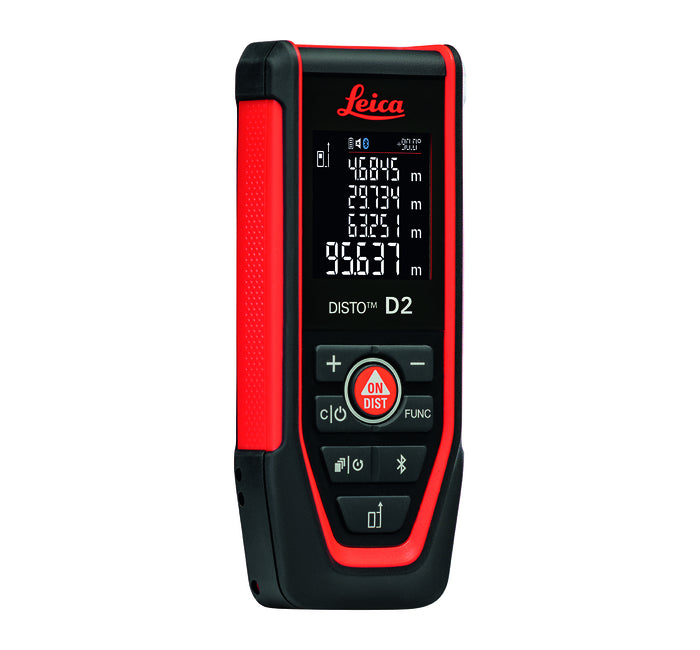

The Leica DISTO™ D2 is a 7 measurement mode LDM accurate to 1/16 of an inch. It features an intuitive back-lit LCD display in a package that is small enough to fit in your pocket.

The D2 measures from its base by default and can be configured to measure from the front.

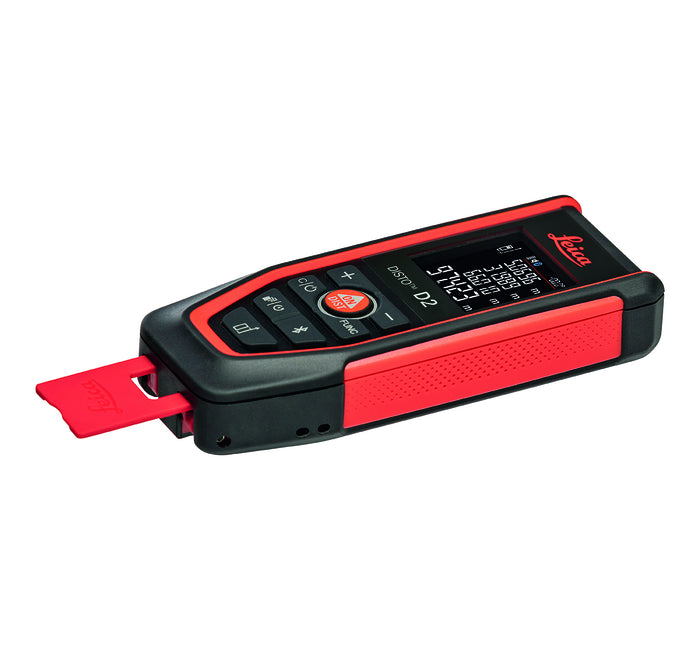

Flip out the intelligent endpiece to 90º to hook onto outside corners or extend the endpiece fully for inside corners. The D2 will automatically measure from the end of its flip-out endpiece when fully extended. Combined with the Min/Max function, the endpiece allows you to get the tool all the way into corners for accurate diagonal measurements as shown in this Intelligent Endpiece video.

The D2 calculates area and volume, and remembers the last 10 measurements taken. Use the Add/Subtract capability to combine measurements to get a precise reading of the total wall area of a room (aka "the painter function").

The D2 includes a Pythagoras function for indirect height or width measurements. However, in a tool this size that cannot be mounted to a tripod we recommend using the Pythagoras for estimates or rough measurements. If you need precise indirect measurements, an LDM with a tilt sensor is your best bet.

Features:
Painter Function:

When the DISTO is in area or volume mode, you can use the add / subtract function to total up the area of several surfaces, or subtract an area, like a door for example, from a measurement.

Bluetooth Smart (4.0):

Send measurements directly to your apps using Bluetooth Smart.

Add & Subtract:

It's not always so simple as taking one shot to get the measurement you need. Sometimes its handy to add multiple shots together, or subtract a negative space from a measurement.

Min / Max Function:

In Min/Max mode, you "sweep" the laser point into a corner. The longest measurement is recorded. Very useful for accurate diagonal room or window/door measurements.

Pythagoras Function:

The key is to make sure your second shot -- the "rectangular shot" -- is perpendicular to the point you are measuring, shown as the 90° angle in the images. The best way to ensure accuracy is to use a tripod and an adapter.

Stake Out Function:

The stake out function uses the continuous measurement mode to indicate where to place stakes along a stake-out line. Ideal for any situation where you need to place objects at a consistent interval. The display shows the distance to the next stake out point and the DISTO beeps as you approach it.

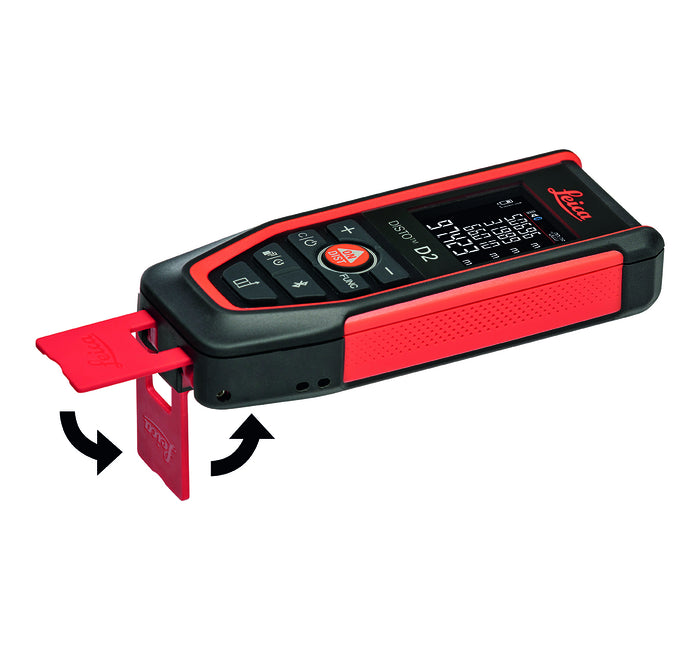

Intelligent Endpiece:

The endpiece is an integral part of the tool, connected to the circuit board. In the closed position the DISTO knows to measure from its base. Flip it open 90 degrees to align the base perfectly on an edge or corner.

Flip it out all the way and you can put this unit in a corner to accurately measure diagonals. Otherwise, the width of the base would prevent you from getting all the way into the corner, rendering the measurement inaccurate.

IP54

"IP" stands for Ingress Protection.

The Ingress Protection (IP) rating was developed by the European Committee for Electrotechnical Standardization (CENELEC) to create a standard of toughness for electronic devices: Higher numbers mean more resistance to dust and water.

Specifications:

Typical measuring accuracy

1/16” / ± 1.5 mm

ISO 16331-1 certified Range

up to 330 ft / up to 100 m

Measuring units

0.000 m, 0.00 ft, 0'00" 1/16, 0 in 1/16

Memory

Last 10 values

Data Interface

Bluetooth® Smart V4.0

Measurements per set of batteries

up to 10,000

Multifunctional end-piece

Yes, Intelligent recognition

Batteries

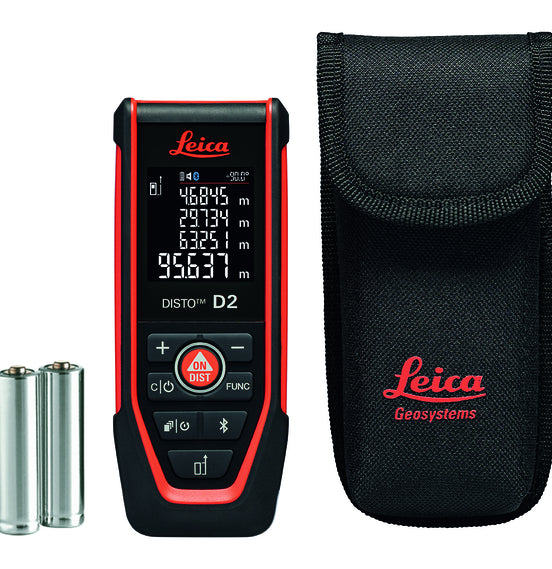

2x AAA 1.5 V (Ships with alkaline)

Display

3 line display with illumination

Protection class

IP 54, dust & splash protected

Dimensions

4.57 x 1.73 x 1.02 in / 116 x 44 x 26 mm

Weight with batteries

3.53 oz / 100 g

Minimum / maximum measurements

Yes

Area / volume calculation

Yes

Pythagoras functions

2 points, 3 points

Stake-out function

Yes, single value

Painter Function

Yes

Subtraction / addition

Yes

Timer function

Yes, variable

Beep

Yes, switchable on/off

Operating temperature range

14°F to 122°F / -10°C to 50°C

Storage temperature range

-13°F to 158°F / -25°C to 70°C

EAN/UPC

7640110696354 (US, CAN) / 7640110696347 (Global)
