Precision Laser Systems  |  SKU: MDPRO 01

Geo Fennel Multi Digit pro

Contact Us for Pricing & A Customised Quote.

Click here to send us an email, or call us on 08 9248 5008.



Subscribe to our newsletter

Get the latest updates on all our new products, sales, offers and more.

Description

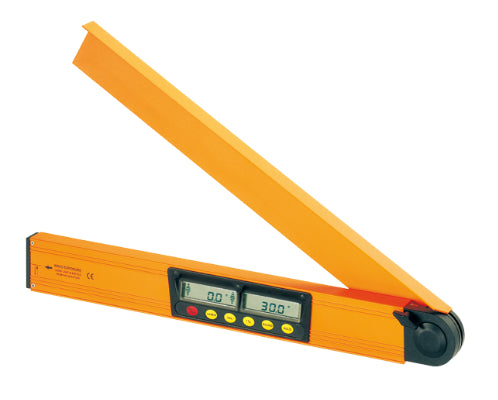

All-in-one Electronic angle measurer, electronic slope measurer and laser spirit level. Easy and accurate.

For measuring angles, inclinations, sloped and plane surfaces.

FEATURES

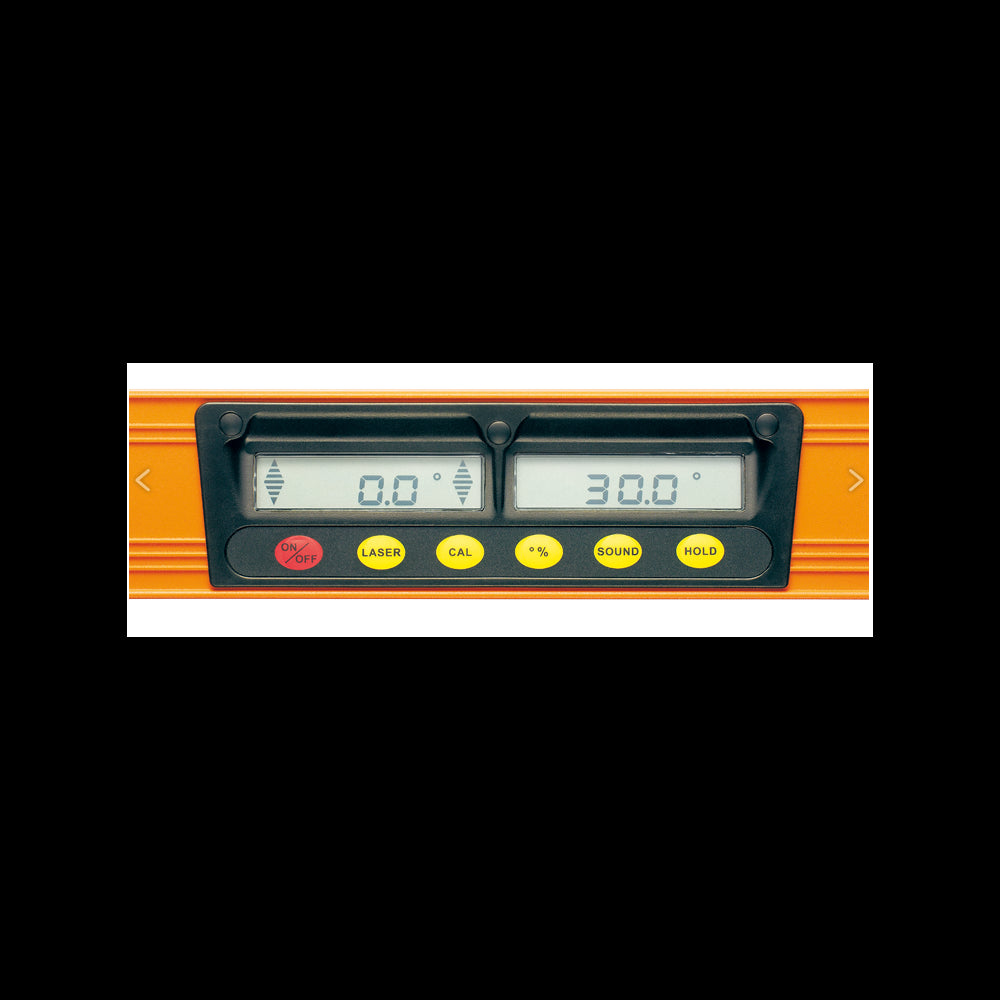

  • Displays angle and inclination simultaneously;
  • Different signal tones when approaching 0° / 90° and continuous tone at 0° / 90°;
  • Inclination direction indication;
  • Zero position re-set at any position;
  • Automatic digit inversion for overhead measurements;
  • Visible laser beam to extend working range;
  • HOLD function to freeze measurement;
  • Illuminated display;
  • Magnetic base;
  • 1/4“ thread for camera tripod;
  • 180° lock to extend the unit to 1 m length;
  • Arm can be locked in any position.
TECHNICAL DATA
  • Working range inclination : 4 x 90°;
  • Resolution : 0.1° / 0.1%;
  • Accuracy inclination :
  • - 0° and 90° = ± 0.1°
  • - 1° - 89° = ± 0.2°
  • Measuring units : °, %, mm/m, in/ft;
  • Working range angle : 0° – 180°;
  • Resolution : 0.1° / 0.1%;
  • Accuracy angle : ± 0.1°;
  • Working range laser : 20 m;
  • Accuracy laser : ± 0.5 mm / 1 m;
  • Wave length / laser class : 650 nm / 2;
  • Power supply : 3 x AA Alkaline;
  • Operating time:
  • - w/o laser 48 h
  • - with laser : 20 h
  • Temperature range : -10 °C bis +45 °C;
  • Weight (incl. Batteries) : 1.3 kg;
  • Size : 520 x 63 x 30 mm;
  • Unfolded length : 1000 mm.
