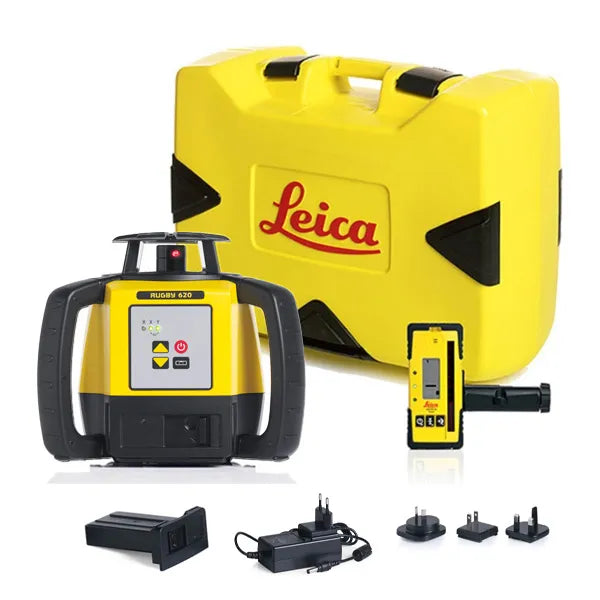

Leica Rugby 620 Laser Level with Manual Grade and Receiver

Contact Us for Pricing & A Customised Quote.

Click here to send us an email, or call us on 08 9248 5008.


Receiver:
Battery:

Subscribe to our newsletter

Get the latest updates on all our new products, sales, offers and more.

Description

Automatic horizontal laser with manual grade capability.

3 year "KNOCKDOWN" warranty.

Where levelling stays in focus

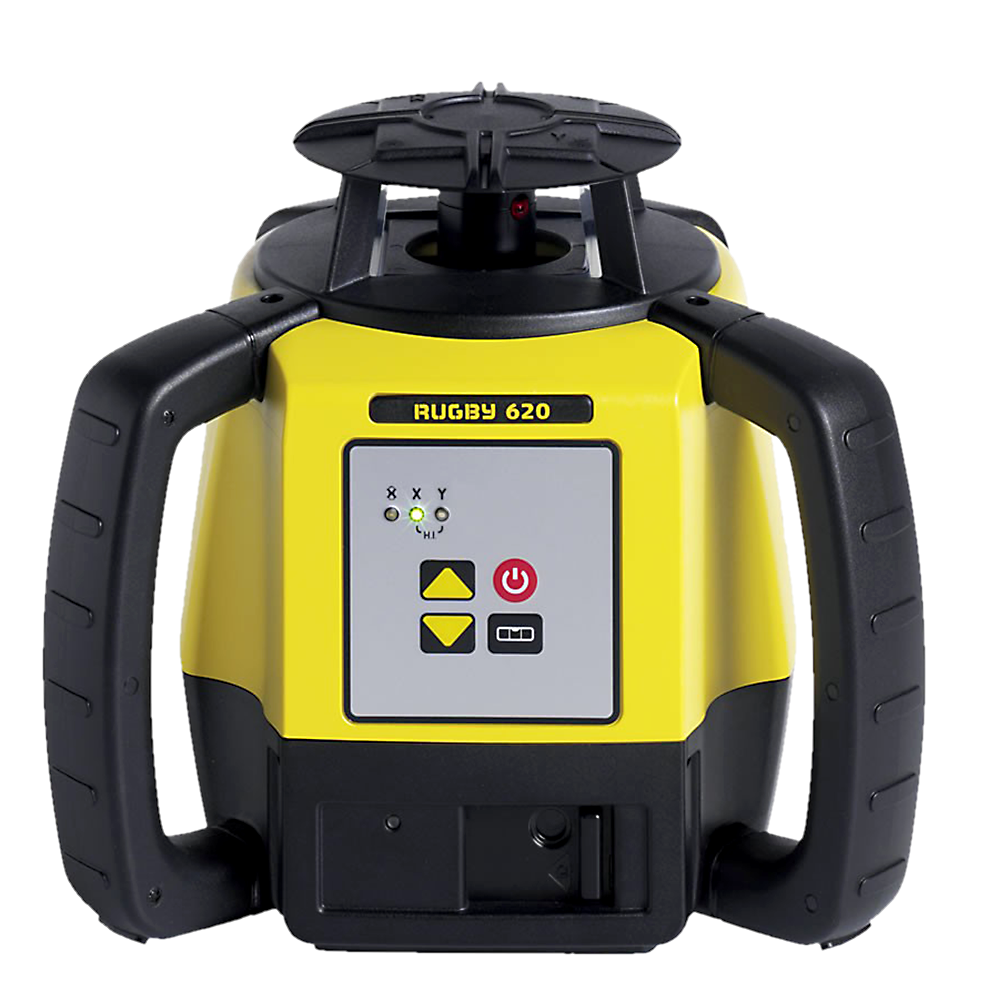

Increase your productivity in levelling applications with the Leica Rugby 620 construction laser. Designed for general contractors who mainly perform formwork and concrete applications, the Rugby 620 rotating laser level offers a professional but simple levelling solution with an outstanding price-to-quality-ratio. Forget about costly errors, rework or downtime thanks to the fully-automatic operation with the Leica Rod Eye receivers. Concrete pouring, formwork levelling, setting foundations and footings has never been more efficient.

Simple and quick slopes
The professional Rugby 620 laser level offers contractors application flexibility, allowing them to perform single slope applications using the manual grade control. Rugby 620 is a perfect laser tool for those contractors who occasionally need to do simple slope tasks like driveways, landscaping and parking areas. Depending on the type of the job, Rugby 620 offers operating range of 500 m with the Rod Eye Basic, and 600 m with the Rod Eye 140 and 160 digital receivers.

Tough as the jobsite
The Rugby 620 rotating laser brings ruggedness and reliability to a jobsite with its IP 67 water and dust protection. Moreover, it is covered by the PROTECT by Leica Geosystems service offering which includes Lifetime Manufacturer’s Warranty and three year No Cost* period, covering the repair or replacement of all defective parts including labour time, adjustment and calibration. Rugby 620 rotary laser is delivered in a package with a long-lasting Li-Ion battery.

* Available for free through online registration within 8 weeks from the purchase date.

Technical Data

Functionality

Self-levelling horizontal and manual slope in one axis

Range (diameter)

1,100 m

Self-levelling accuracy (defined at 25°C)

± 2.2 mm @ 30 m

Self-levelling range

± 5°

H.I. elevation alert

YES

Rotation speeds

10 rps

Laser diode type / class

635 nm / Class 1

Dimensions (HxWxD)

212 x 239 x 192 mm

Weight with batteries

2.6 kg

Protection class (splash water / dust proof)

IP67

Operating temperature range

-20° to +50°C
