Precision Laser Systems  |  SKU: LG792290

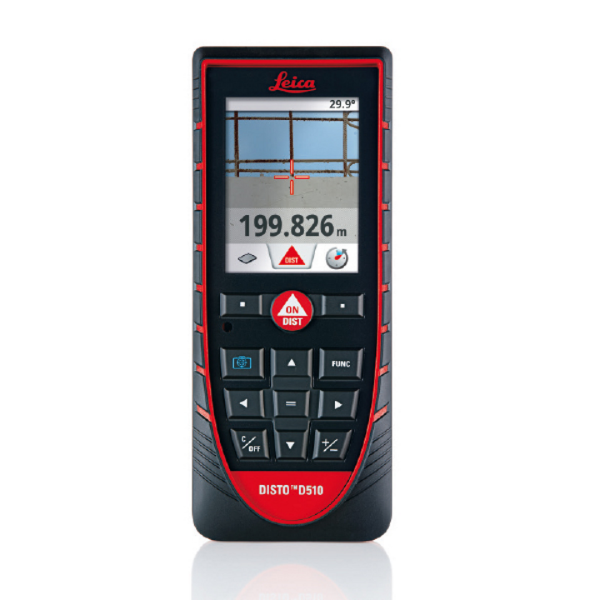

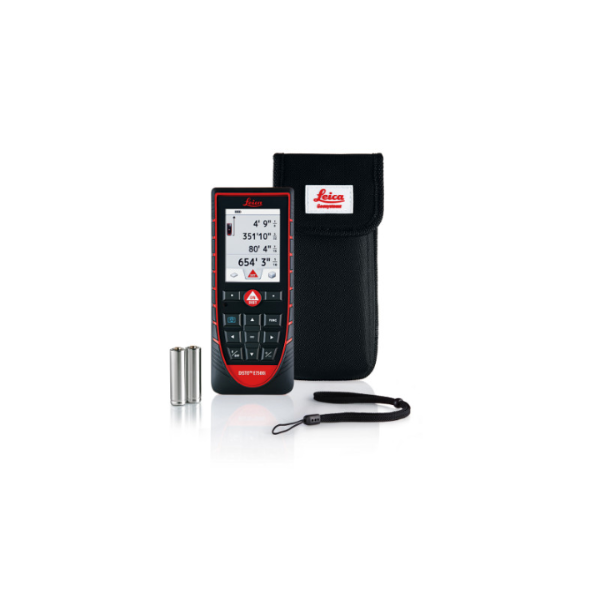

Leica Disto D510

Contact Us for Pricing & A Customised Quote.

Click here to send us an email, or call us on 08 9248 5008.



Subscribe to our newsletter

Get the latest updates on all our new products, sales, offers and more.

Description

Features:

Bluetooth Smart (4.0):

Send measurements directly to your apps using Bluetooth Smart.

Area / Volume:

In area mode, the DISTO determines the area of a rectangle or square in two shots. Volume mode adds a third vertical shot to calculate volume.

Trapezium Function:

The Trapezium Function is useful for determining the length and slope of a roof section, and the area it covers. The DISTO uses the its internal tilt sensor to calculate the angle and the distance between the shots, which means you can measure roofs accurately from the ground.

Stake Out Function:

The stake out function uses the continuous measurement mode to indicate where to place stakes along a stake-out line. Ideal for any situation where you need to place objects at a consistent interval. The display shows the distance to the next stake out point and the DISTO beeps as you approach it.

360° Tilt Sensor:

Functions that need to know the angle of the DISTO when the shot is taken are enabled by a highly accurate 360° tilt sensor that determines the angle of the laser. These include Smart Horizontal and Height Tracking modes.

Timer:

Set a timer to delay a measurement the same way you would with the shutter on a digital camera.

Single Measurement 660ft Range:

The big receiver lens and the module it is connected to can see a laser dot outside at distances of over 600 ft, depending on conditions.

Triangle / Room:

The simple area function is great when a room is a square or rectangle, but what if you have to determine the area of a room that has more than four corners? That is where the triangle function comes in. Divide the room into imaginary triangles, take three shots for each and then add them up. The DISTO will also tell you circumfrence and the angle of the triangle.

Building Information Modeling (BIM):

Bluetooth DISTOs & the wifi 3D DISTO are useful for Building Information Modeling (BIM).

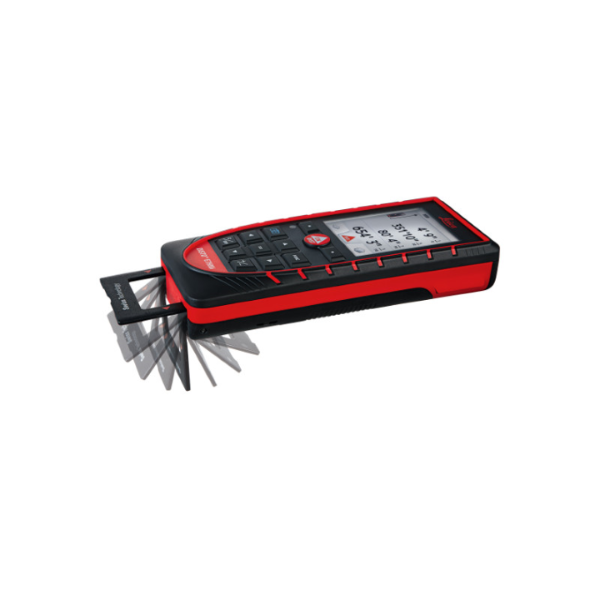

Intelligent Endpiece:

The endpiece is an integral part of the tool, connected to the circuit board. In the closed position the DISTO knows to measure from its base. Flip it open 90 degrees to align the base perfectly on an edge or corner. Flip it out all the way and you can put this baby in a corner to accurately measure diagonals. Otherwise, the width of the base would prevent you from getting all the way into the corner, rendering the measurement inaccurate.

Personalize Favorites:

With over 20 functions, chances are you are going to use one or two more than the rest. This Favorites function lets you bookmark your most-used functions on the tabs at the bottom of the touch screen.

Smart Horizontal™ Mode:

Use Smart Horizontal to determine the level horizontal distance to a target when you have to shoot over an obstacle. The onboard 360° tilt sensor provides an angle measurement so the software can do the math to figure out how much to subtract from the angled shot to get the actual horizontal distance.

Painter Function:

When the DISTO is in area or volume mode, you can use the add / subtract function to total up the area of several surfaces, or subtract an area, like a door for example, from a measurement.

Accurate to 1/16 of an inch:

That's right: A sixteenth of an inch. Take out a pair of earbuds. Look at how wide the the 1/8" jack is. Now divide that by half.

Add & Subtract:

It's not always so simple as taking one shot to get the measurement you need. Sometimes its handy to add multiple shots together, or subtract a negative space from a measurement.

Min / Max Function:

In Min/Max mode, you "sweep" the laser point into a corner. The longest measurement is recorded. Very useful for accurate diagonal room or window/door measurements.

Pythagoras Function:

The key is to make sure your second shot -- the "rectangular shot" -- is perpendicular to the point you are measuring, shown as the 90° angle in the images. The best way to ensure accuracy is to use a tripod and an adapter.

4x Zoom Pointfinder camera:

The onboard digital camera features a 4x digital zoom "point finder" that shows you where the dot is even if you can't see it with the naked eye. Put the crosshairs on the spot you are measuring to and hit the button. It's that simple.

Memory stores 30 Displays:

Store measurements and images with measurements associated with them.

Specifications:

Typical measuring accuracy

± 1 mm

Range

up to 200 m

Measuring units

m, ft, in, yd

Distance in m
Ø of the laser dot in mm

10, 50, 100 m
6, 30, 60 mm

Tilt sensor measuring range

360°

Memory

30 displays

Data interface*

Bluetooth® Smart

Measurements per set of batteries

up to 5000**

Multifunctional end-piece

automatic recognition

Batteries

type AAA 2 × 1,5 V

Protection class

IP65 – water jet protection and dust-tight

Dimensions

143 × 58 × 29 mm

Weight with batteries

198 g
