Leica Lino L2s-1 Cross Line Laser Level

• Red beam cross-line laser level;
• Impact absorbing rubber pads;
• IP54 shock and water resistant;
• Large laser fan angle;
• 3 year warranty upon registration.

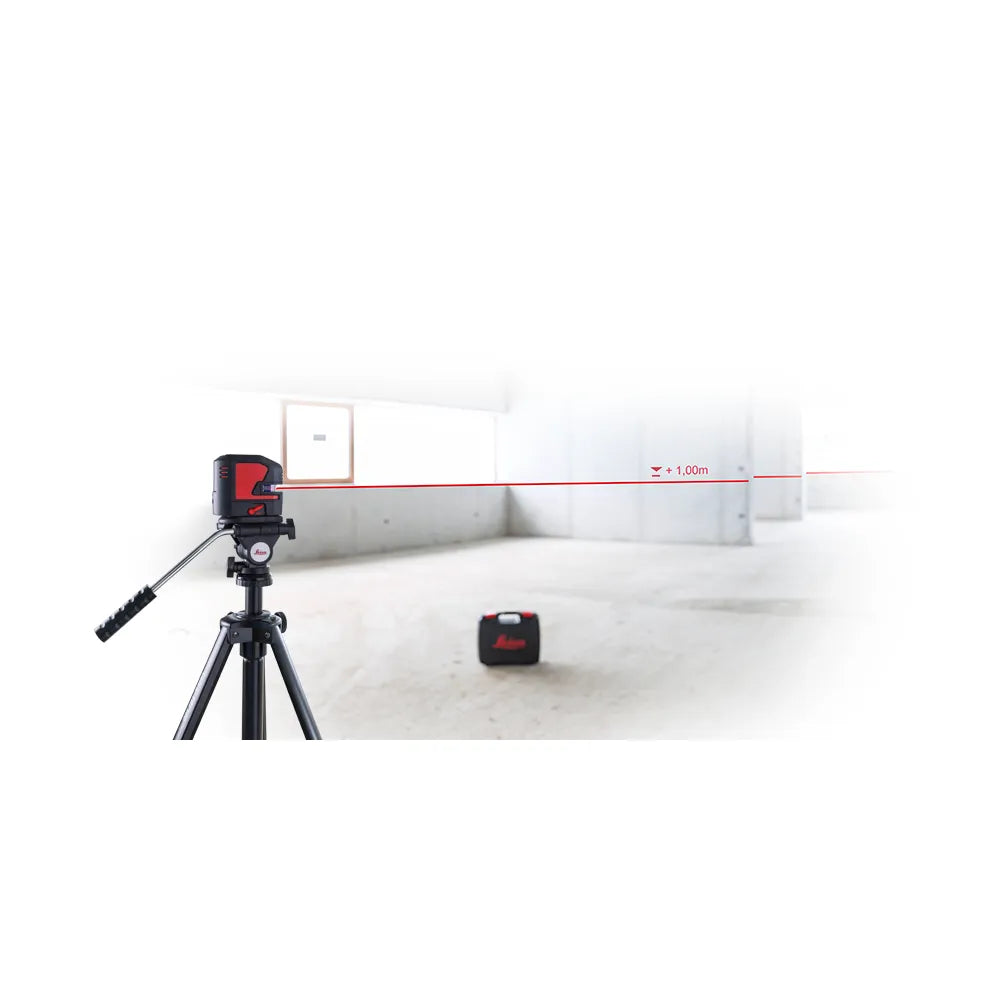

The high-precision optics of the Leica Lino L2s-1 ensure outstanding laser line visibility up to 25 meters, depending on lighting conditions. Its exceptionally long horizontal and vertical laser lines are projected to floors, walls and ceilings at more than 180 degrees.

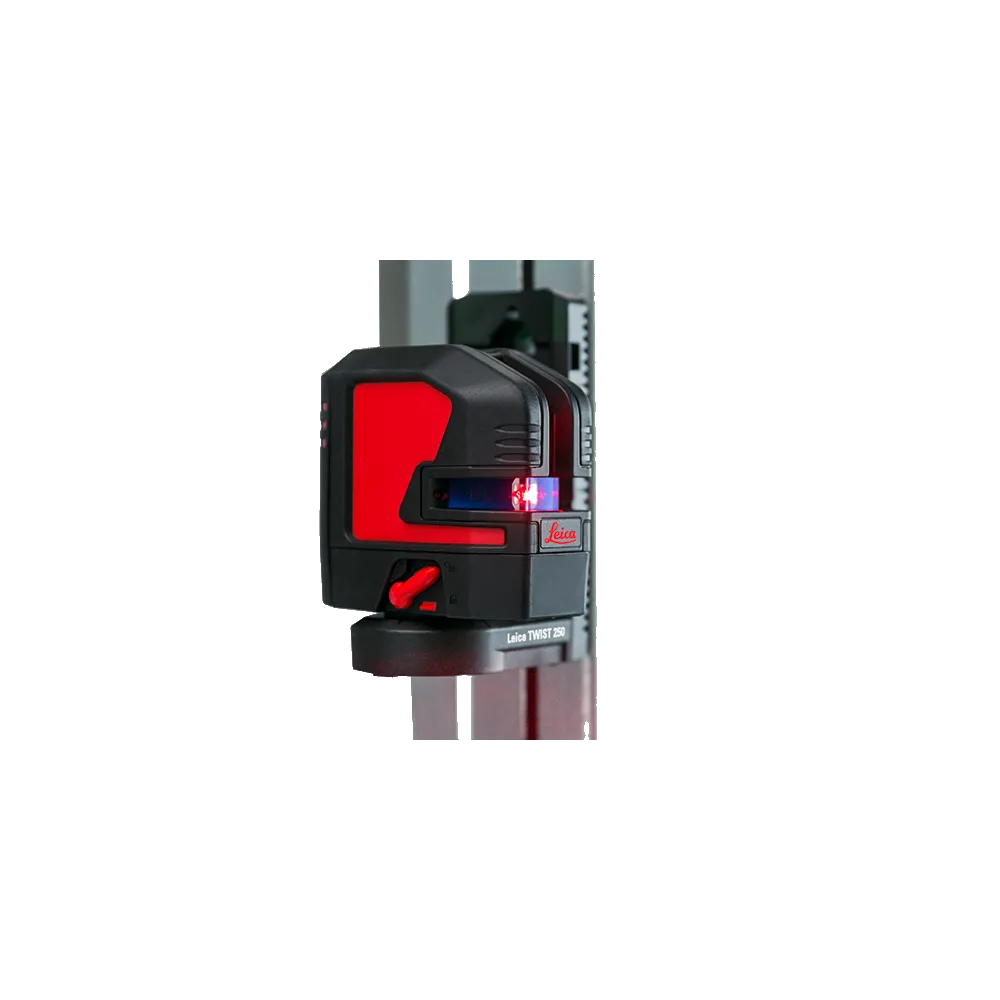

The Leica Lino L2s-1 automatically adjusts its positioning if it is slightly out of level up to ± 4°. Outside this limit a visual alert is activated to prevent errors. Smart adapters allow for quick and precise positioning. You can set up rotatable adapters over edges and profiles, or easily attach them to iron pipes, tracks and bars.

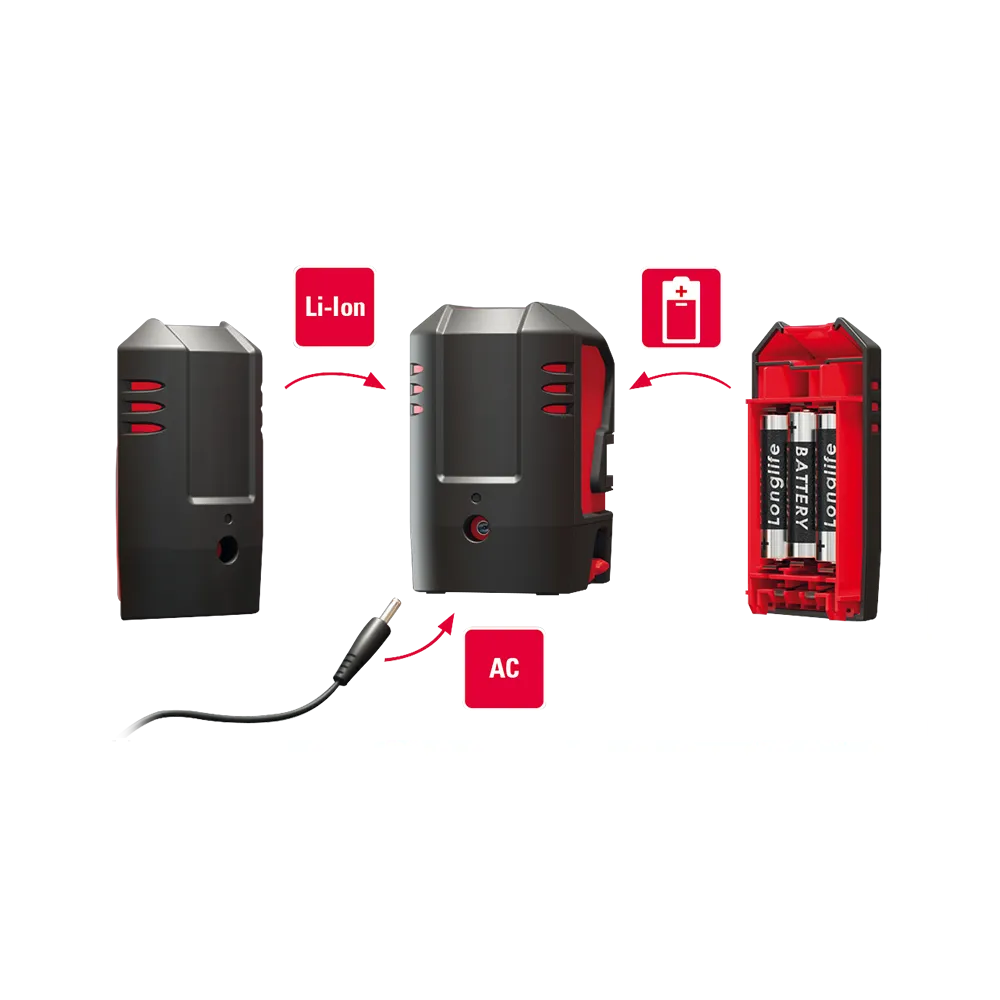

The Leica Lino L2s-1’s triple power concept ensures an uninterrupted workflow. You can power your laser by using rechargeable Li-Ion batteries for up to 44 hours on one charge. Alternatively, you can use Alkaline batteries or simply its charger.

The Leica Lino L2s-1 is dust and spray water protected to IP 54 standards. This makes it a rugged instrument suitable for all your jobs.

Specifications:

Range: Up to 25 m depending on lighting conditions.
Range with laser receiver: Up to 80 m depending on lighting conditions.
Levelling accuracy: ± 0.2 mm / m.
Self-levelling range: ± 4 °.
Self-levelling time: < 3 s.
Number of laser lines: 2.
Beam direction: Vertical, horizontal.
Laser line width at 5m: < 2 mm.
Laser type: 635 nm / class 2 (red).
Battery type: Li-Ion rechargeable (or AA 3 x 1.5 V).
Operating time: Up to 44 h (Li-Ion) depending on laser mode.
Temperature range storage: -25 to 70°C (-13 to 158°F).
Temperature range operation: -10 to 50°C (14 to 122°F).
Protection class: IP 54.
Dimensions: 110 x 60 x 100 mm.
Weight with batteries: 530 g.
Tripod thread: Lino 1/4".
Tripod thread adapter: 1/4" + 5/8".
