Precision Laser Systems  |  SKU: Geo6 XR 01

Geo-fennel Geo6-XR Green

Contact Us for Pricing & A Customised Quote.

Click here to send us an email, or call us on 08 9248 5008.



Subscribe to our newsletter

Get the latest updates on all our new products, sales, offers and more.

Description

Geo-Fennel Geo6-XR GREEN Selection PRO Line and Dot Laser Level.

Product Overview

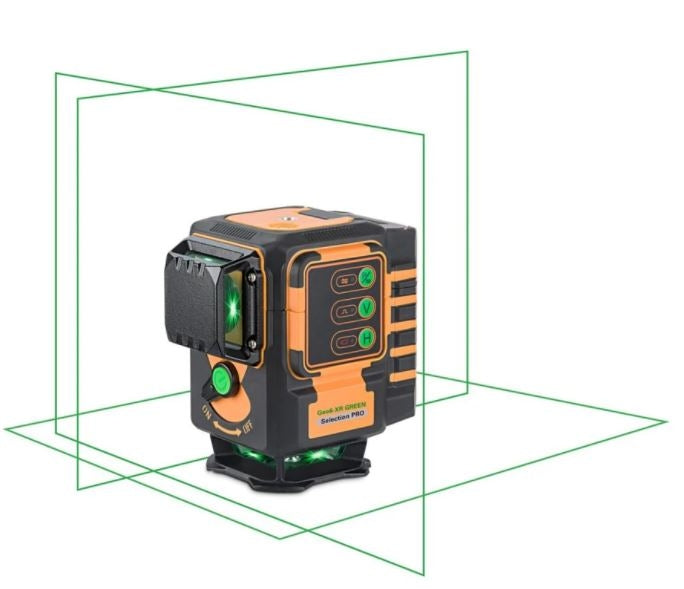

3x 360° highly visible green laser lines all perpendicular to each other

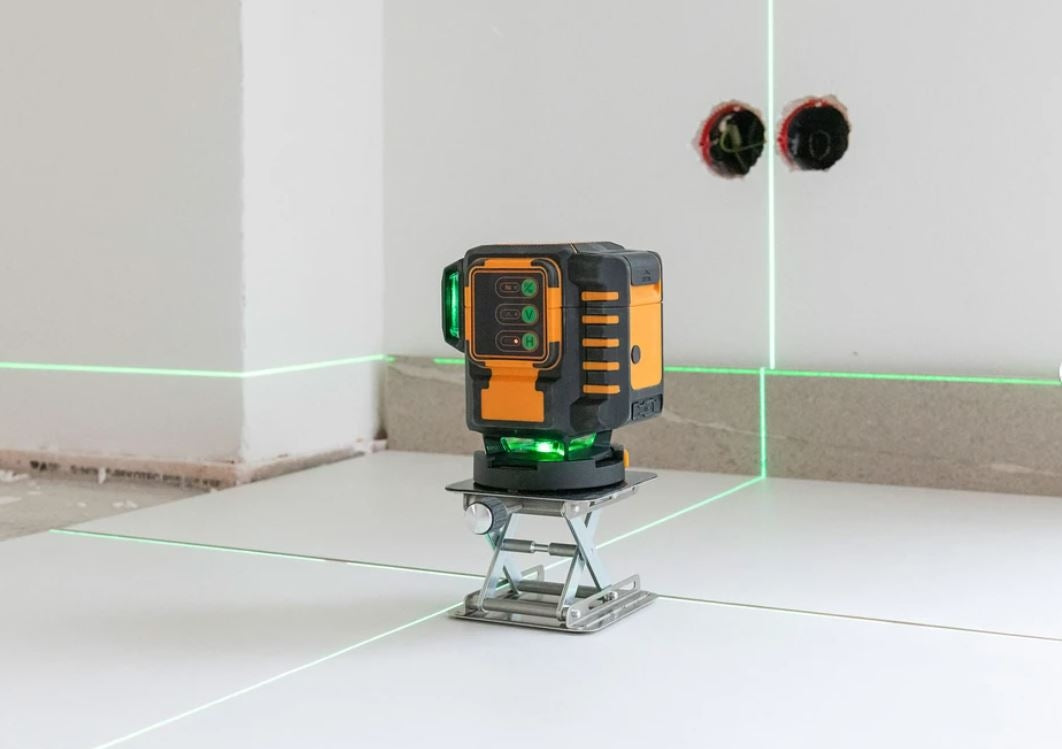

  • Projecting right angles everywhere at the floor for straight and diagonal laying of tiles
  • Installation and verification of correct floor height
  • 3 x 360° green laser lines - visible up to 40 m
  • Height adjustable platform with a range from 25 to 85 mm for precise height control when setting out floor coverings
  • 20 mm fixed height adaptor with 5/8“ thread
  • Height adjustable wall-mount with swivel-mount support rail
  • Optimise floor tile layout with free-hanging tripod mount
  • Monitor and correct floor levels using the height measurement pins
  • Pulse-function to extend working range with receiver (optional)
Features
  • 3 x 360°-Laser lines - form 6 laser crosses
  • Laser lines switchable separately
  • Plumbing function
  • Minimum laser line distance to floor 8 mm
  • Minimum laser line distance to wall 6 mm
  • Height adjustable platform from 25 to 85 mm
  • Wall-mount
  • Height and side adjustable
  • Can be fixed to a wall
  • Attachment to magnetic surfaces
  • Strap attachment
  • Visual and audible alarm when out of level
  • Self-levelling function can be locked for manual use
  • 5/8“ thread for use with tripods etc. (bottom / face adaptor)
  • 1/4“ thread for use with adaptor etc. (top side)
  • Use with receiver FR 75-MM / FR 55 / FR 55-M (optional)

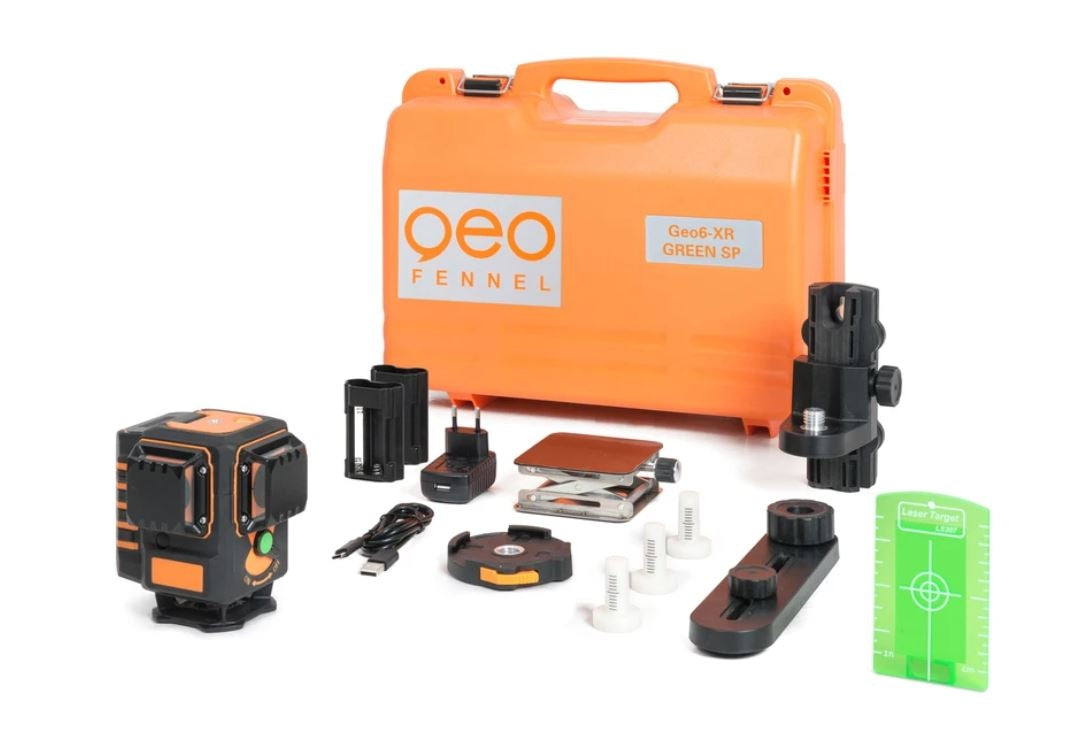

Includes
  • Li-Ion battery
  • USB 3.0 Cable
  • Battery case for alkaline batteries
  • Height adjustable platform
  • Wall-mount
  • Support rail
  • 20 mm Fixed height adaptor with 5/8“
  • 3x Height measurement pins
  • Magnetic target
  • Container





















Specifications
  • Self-levelling range ± 3°
  • Accuracy ± 2 mm / 10 m
  • Laser diode / class green / 2
  • Working range without receiver 40 m* (radius)
  • Working range with receiver 60 m** (radius)
  • Operating time / Power supply
  • 1 x 360° 15 h / Li-Ion
  • 2 x 360° 7 h / Li-Ion
  • 3 x 360° 5 h / Li-Ion
  • Dust/water-protection IP 54
  • Temperature range -10°C to +45°C
  • Size 115 x 96 x 118 mm
  • Weight (instrument with battery) 0,8 kg



























* depending on room illumination



** depending on direction of laser
