Precision Laser Systems  |  SKU: LINO L2P5G-1

Leica Lino L2P5G-1 - Green Beam Line and Point Laser

Contact Us for Pricing & A Customised Quote.

Click here to send us an email, or call us on 08 9248 5008.


Leica Lino L2P5G-1 - Green Beam Line and Point Laser is backordered and will ship as soon as it is back in stock.


Subscribe to our newsletter

Get the latest updates on all our new products, sales, offers and more.

Description

Green Lasers

The Leica Lino L2P5G uses the best green laser technology and combines it with the functionalities of a cross line laser and a point laser. Its green laser beams and points are up to four times more visible to the human eye compared to red ones, which makes it the ideal tool for bright environments and large rooms.

Li-ion Technology

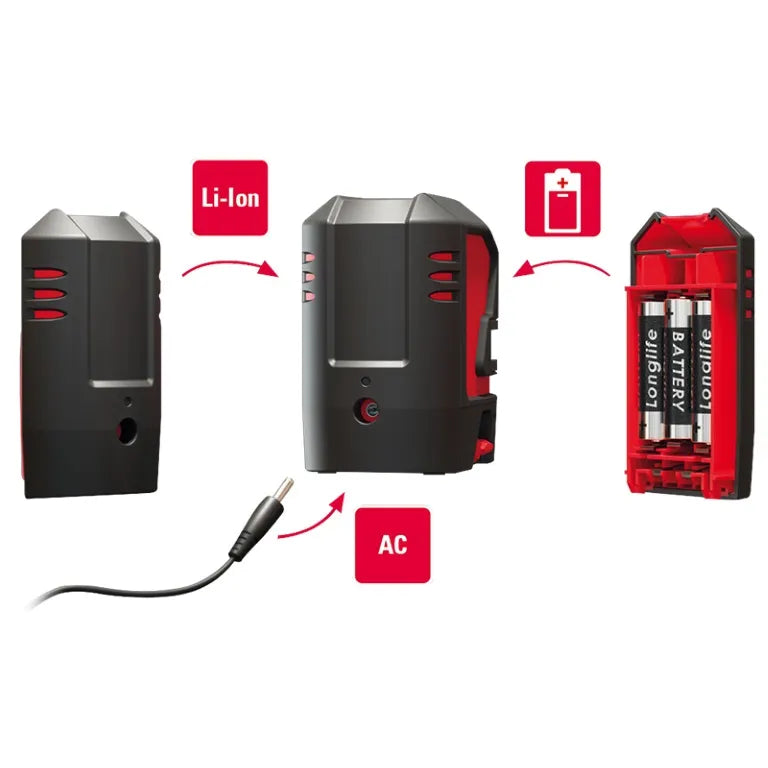

Li-Ion batteries allow this all-round laser tool to run up to 28 hours on just one charge. Alternatively, it can be powered by Alkaline batteries or by its charger.

Maximum Accuracy

The Leica Lino L2P5G uses the latest green laser technology which projects clearer and crisper laser lines at exact right angles to one another. This allows for the highest accuracy of detailed interior tasks.

Working Range

The large glass optics of this multi-functional tool allow for perfect levelling and alignment over long distances. The working range is up to 35 meters depending on the lighting conditions, and can easily be extended up to 80 meters using the laser receiver Leica RGR 200.

Easy Positioning

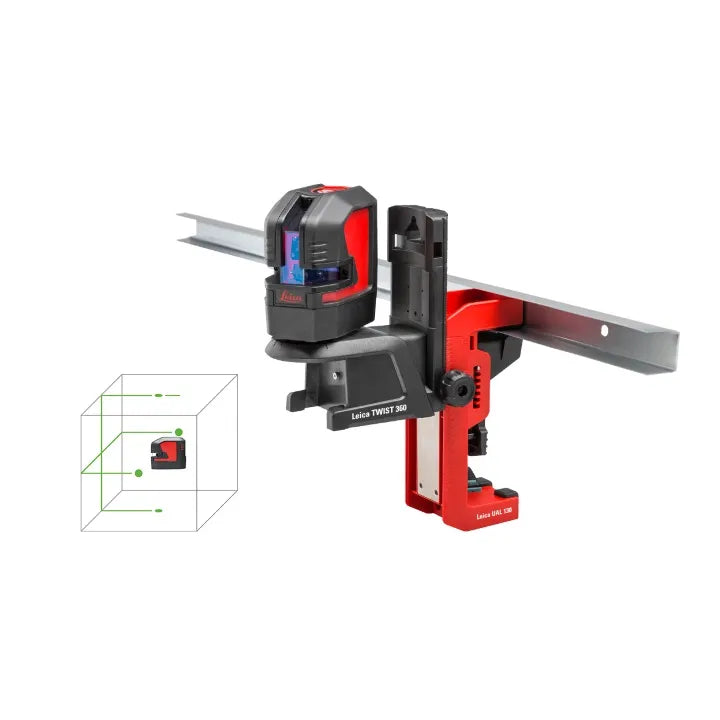

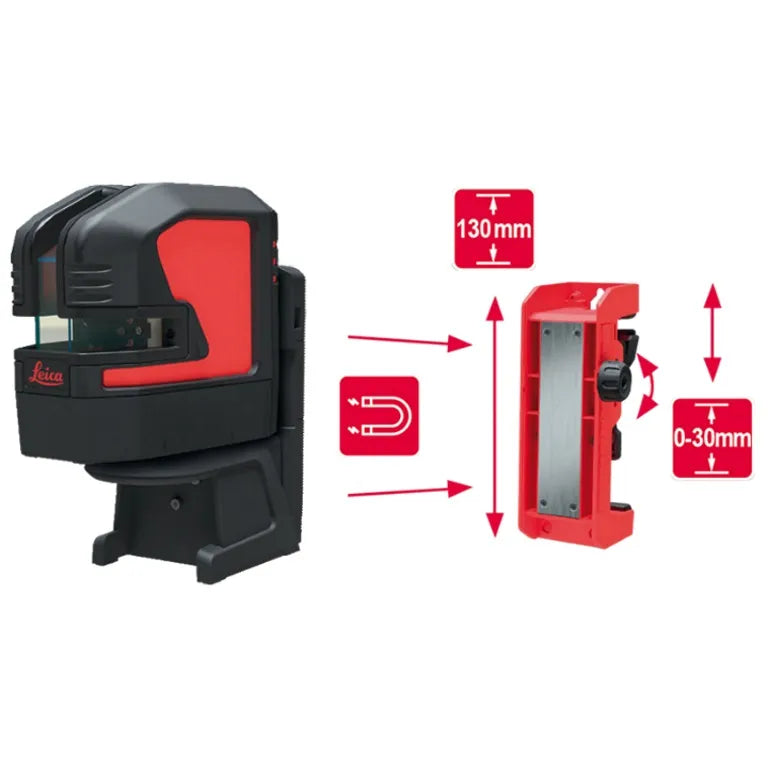

The Leica Lino L2P5G is quickly and easily attached to a variety of surfaces. Its magnetic adapter fits into U-profiles and with the addition of the UAL 130 adapter the device is easily attached to edges, metal poles, and bars.

Self Levelling

The cross-line and point lasers of the Leica Lino L2P5G are always level once positioned. The tilt is automatically adjusted when within a ± 4° limit. Outside this limit an alert indicates that the positioning needs to be adjusted.

Construction Site Proof

The Leica Lino L2P5G has a rugged design and is dust and spray water protected to IP 54 standards. This makes it a great tool to speed up the workflow and increase productivity on today’s construction sites.

Specifications:

Range up to 35 m depending on lighting conditions
Range with laser receiver up to 80 m depending on lighting conditions
Levelling accuracy ± 0.2 mm  / m
Self-levelling range ± 4 °
Self-levelling time < 3 s
Number of laser dots 4
Number of laser lines 2
Beam direction vertical, horizontal, up, down, right, left
Dot accuracy ± 0.2 mm / m
Laser line width at 5m < 2 mm
Laser type 525 nm  / class 2 (green)
Battery type Li-Ion rechargeable (or AA 3 x 1.5 V)
Operating time up to 28 h (Li-Ion) depending on laser mode
Temperature range storage -25 to 70°C (-13 to 158°F)
Temperature range operation -10 to 50°C (14 to 122°F)
Protection class IP 54
Dimensions 110 x 60 x 100 mm
Weight with batteries 530 g
Tripod thread Lino 1/4"
Tripod thread adapter 1/4" + 5/8"
Art. No. 864435
EAN / UPC 7640110697559

Payment & Security

Payment methods

  • PayPal

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Precision Laser Systems

Leica Lino L2P5G-1 - Green Beam Line and Point Laser

$0.00

Green Lasers

The Leica Lino L2P5G uses the best green laser technology and combines it with the functionalities of a cross line laser and a point laser. Its green laser beams and points are up to four times more visible to the human eye compared to red ones, which makes it the ideal tool for bright environments and large rooms.

Li-ion Technology

Li-Ion batteries allow this all-round laser tool to run up to 28 hours on just one charge. Alternatively, it can be powered by Alkaline batteries or by its charger.

Maximum Accuracy

The Leica Lino L2P5G uses the latest green laser technology which projects clearer and crisper laser lines at exact right angles to one another. This allows for the highest accuracy of detailed interior tasks.

Working Range

The large glass optics of this multi-functional tool allow for perfect levelling and alignment over long distances. The working range is up to 35 meters depending on the lighting conditions, and can easily be extended up to 80 meters using the laser receiver Leica RGR 200.

Easy Positioning

The Leica Lino L2P5G is quickly and easily attached to a variety of surfaces. Its magnetic adapter fits into U-profiles and with the addition of the UAL 130 adapter the device is easily attached to edges, metal poles, and bars.

Self Levelling

The cross-line and point lasers of the Leica Lino L2P5G are always level once positioned. The tilt is automatically adjusted when within a ± 4° limit. Outside this limit an alert indicates that the positioning needs to be adjusted.

Construction Site Proof

The Leica Lino L2P5G has a rugged design and is dust and spray water protected to IP 54 standards. This makes it a great tool to speed up the workflow and increase productivity on today’s construction sites.

Specifications:

Range up to 35 m depending on lighting conditions
Range with laser receiver up to 80 m depending on lighting conditions
Levelling accuracy ± 0.2 mm  / m
Self-levelling range ± 4 °
Self-levelling time < 3 s
Number of laser dots 4
Number of laser lines 2
Beam direction vertical, horizontal, up, down, right, left
Dot accuracy ± 0.2 mm / m
Laser line width at 5m < 2 mm
Laser type 525 nm  / class 2 (green)
Battery type Li-Ion rechargeable (or AA 3 x 1.5 V)
Operating time up to 28 h (Li-Ion) depending on laser mode
Temperature range storage -25 to 70°C (-13 to 158°F)
Temperature range operation -10 to 50°C (14 to 122°F)
Protection class IP 54
Dimensions 110 x 60 x 100 mm
Weight with batteries 530 g
Tripod thread Lino 1/4"
Tripod thread adapter 1/4" + 5/8"
Art. No. 864435
EAN / UPC 7640110697559
