LATEC Single Laser Control System with Millimetre Offset
LATEC Single Laser Control System with Millimetre Offset is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new products, sales, offers and more.
Description
Description

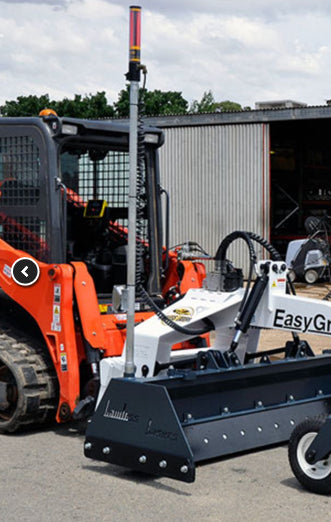

The EG Machine Control systems were designed to let you achieve maximum control of your grading system, at a very friendly price. The four configurations of the EG series are versatile and can be installed on a number of machines including box blades, box scrapers, graders, mini-graders and skid steers.
The system controls most valve packages, giving the user both LED and a real-time LCD display so you are always in touch with the blade position.

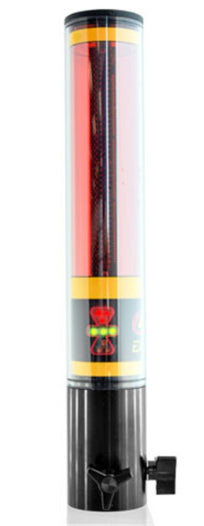

The EG Series receivers can detect any rotating red beam laser with itts 173mm (7") capture range, and in turn indicates the blade position to within a 2mm accuracy.

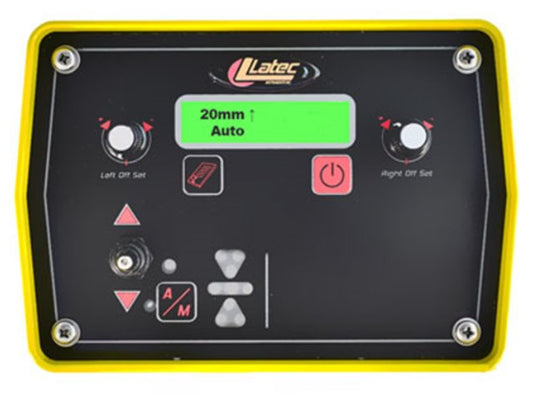

The receiver has LED indicator lights that give the same output as the control box LED indicators. So whether you're standing on the field , or driving the machine you'll always know where your blade needs to be. The control box allows the user to configure the display to indicated variances from the on grade position in real-time. The Receiver is able to attach to a 45mm (1 3/4 Inch) standard pipe. The complete system requires 10-30 VDC to operate.
1 x Dual Valve Cable (suit PT, PC, PV & SCV)
System is also compatible with Apache Bullseye Receivers, Topcon LS-B Receivers and Spectra LR receivers. Please contact us for more information.
